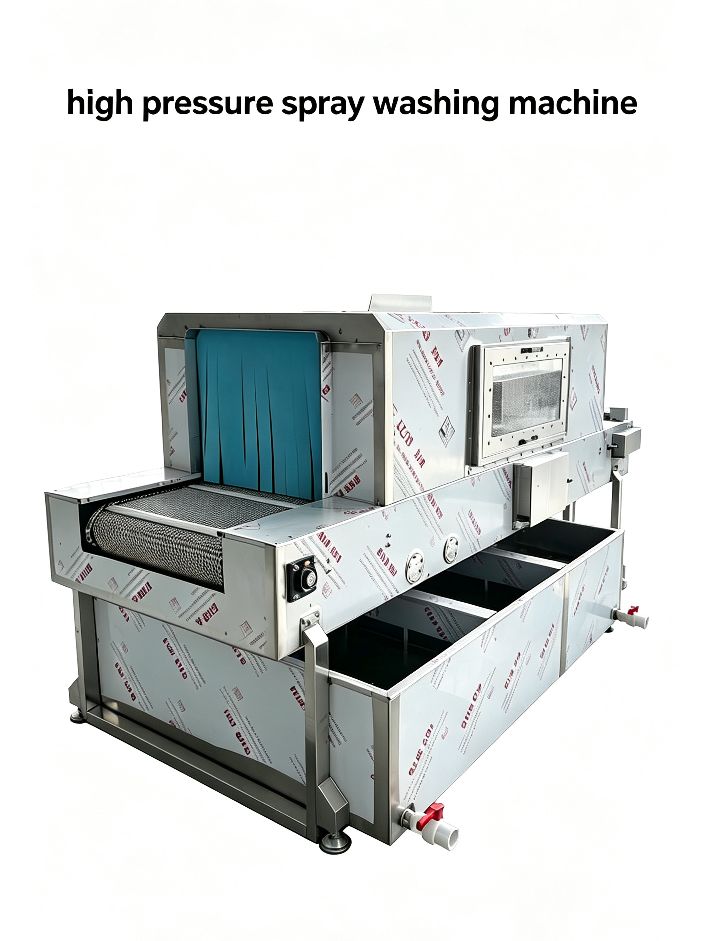

High Pressure Spray Washing Machine
Introduction
The High Pressure Spray Washing Machine is widely applied in fruit and vegetable cleaning, drying, meat cutting, quick-freezing, bakery cooling, beverage filling, and continuous industrial production lines. It adopts frequency conversion speed regulation, allowing the conveying speed to be adjusted freely to match fast or slow production lines and adapt to heavy or light stain cleaning requirements. The flexible mesh belt conveying design effectively reduces collision and scratches to trays and containers. With a cleaning rate exceeding 99%, it eliminates missed washing and inconsistent manual results.
The machine achieves 360° all-around, dead-angle-free cleaning. High-pressure nozzles are strategically positioned on the top, bottom, left, and right sides of the washing chamber. It thoroughly cleans deep gaps, blind holes, and threads of plastic trays, turnover boxes, and crates without uneven washing pressure or missed sections.
Equipped with an advanced water recycling system, the water reuse rate exceeds 80%, reducing water consumption to just 1/3 to 1/5 of traditional manual or open cleaning methods. In addition, it recovers thermal energy from hot water or steam, cutting power consumption by more than 30% for sustainable, eco-friendly, and cost-effective operation.
Constructed entirely of thickened food-grade stainless steel, the machine offers simple maintenance, rapid disassembly, high tensile strength, and exceptional corrosion resistance for continuous sanitary operation. Complete specifications and custom dimensions are available to fit specific workshop layouts.
Technical Specifications
| Product Name | High Pressure Spray Washing Machine |
| Brand | Xinyueda |
| Material | Food Grade 304 Stainless Steel (Customized materials optional) |
| Conveying System | Stainless steel mesh belt conveyor, frequency conversion speed adjustable |
| Cleaning Type | 360° all-around high-pressure spray cleaning, no dead corners |
| Cleaning Rate | ≥ 99% |
| Water Recycling Rate | > 80% |
| Energy Saving | Steam & hot water heat recovery, power saving ≥ 30% |
| Customization | Customized size, structure, and layout according to factory drawings |
| Voltage | 380V, 50Hz (Customizable for 220V/415V/480V 60Hz) |
| Finish / Color | Silver (Natural Stainless Steel) |
| Place of Origin | Jinan, Shandong, China |
Key Advantages

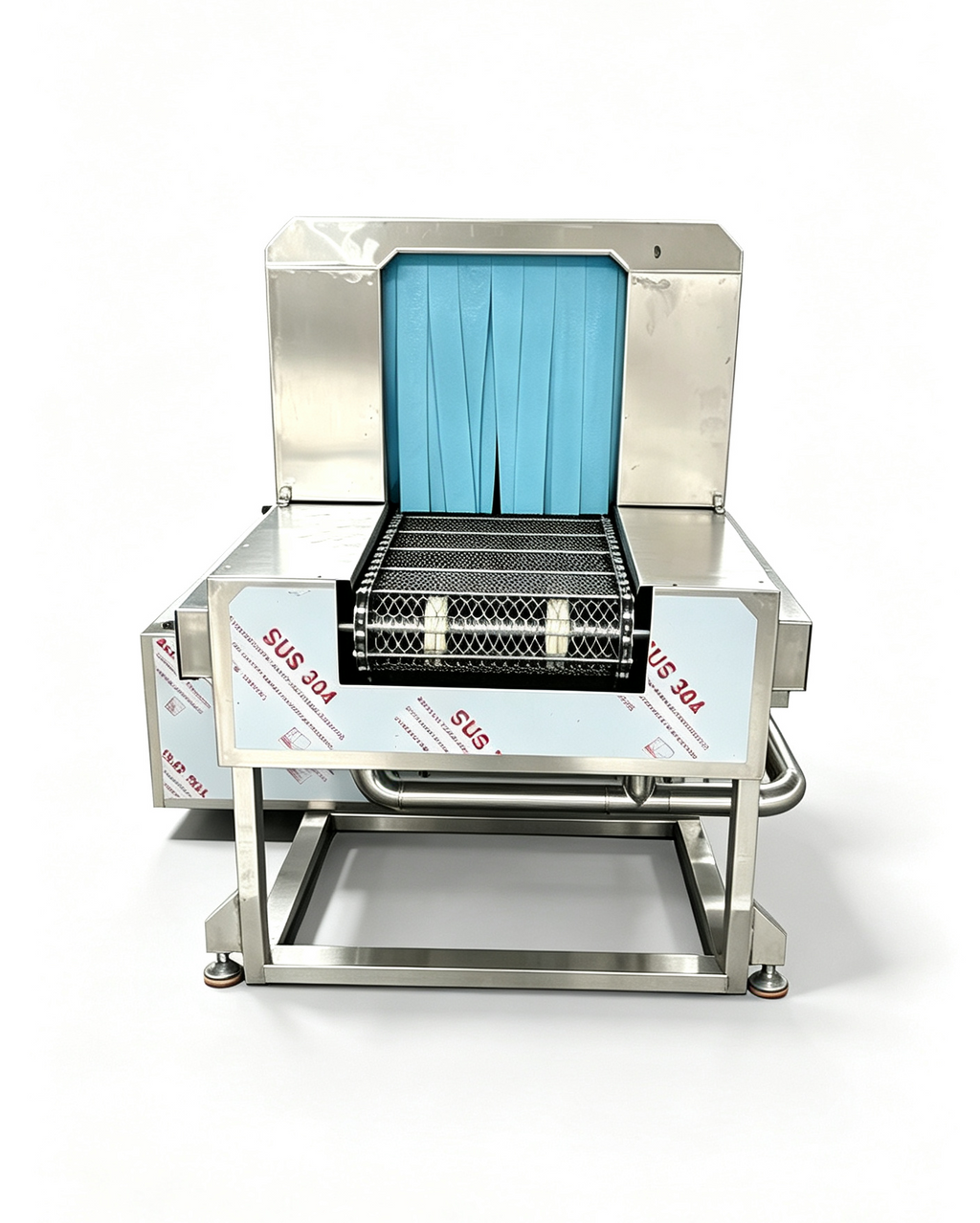

- Flexible Mesh Belt Transport: Minimizes collision and scratches to containers, trays, and delicate food materials.
- Variable Speed Frequency Control: Stepless speed adjustment adapts precisely to heavy grease, stubborn dirt, or light surface dust.
- Consistent Industrial Washing: 360-degree multi-directional spray coverage ensures consistent washing quality across large batches.
- Low Operating Costs: High-efficiency water recycling (>80%) and heat recovery system cut water usage and electricity expenses significantly.
- Sanitary & Easy Maintenance: Thickened SUS 304 construction with modular panels allows quick disassembly, easy inspection, and thorough cleaning.
Applications & Applicable Industries
- Target Industries: Food processing, chemical production, rubber & plastic manufacturing, and pharmaceuticals.
- Production Line Scenarios: Fruit & vegetable cleaning and drying lines, meat cutting workshops, quick-freezing pre-treatment, bakery cooling lines, and beverage bottling/filling plants.
- Applicable Items: Turnover crates, plastic trays, baskets, moulds, frozen trays, fruits, vegetables, and meat products.
To inquire about customized tunnel dimensions, pump specifications, or factory-direct quotation for the High Pressure Spray Washing Machine, contact us on WhatsApp at +86 151 5418 7530 or email xinyueda.manufacturing@gmail.com. We will reply within 24 hours.
